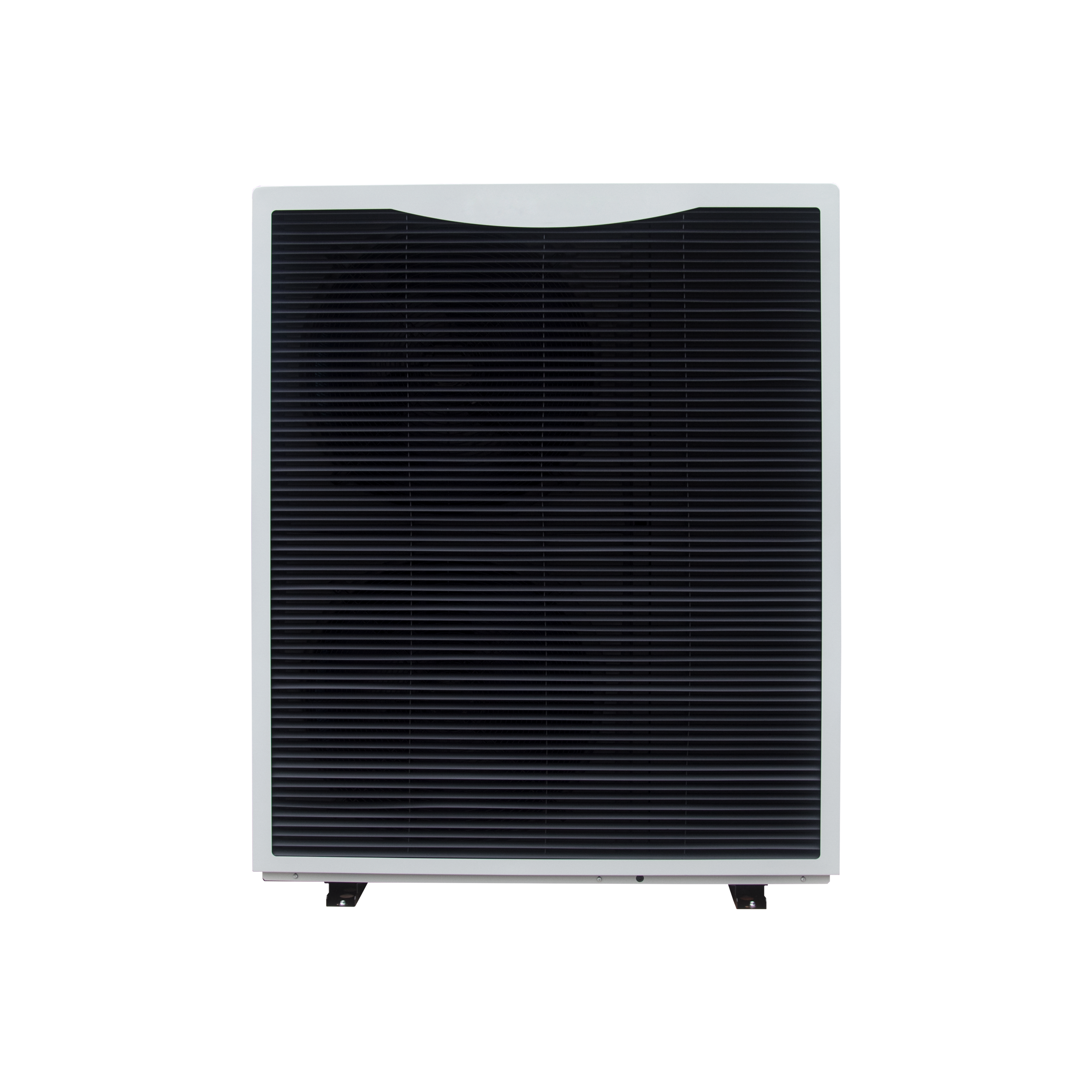

SMAD 18kW R290 Air Source Heat Pump | Three Phase 380–415V | A+++ Inverter System

SMAD 18kW R290 Air Source Heat Pump | Three Phase 380–415V | A+++ Inverter System

Vendor: Smad-Heat Pump
SKU: DFT-018CCSE3
Availability: In Stock

· 18kW High Heating Capacity (Three Phase 380–415V) – Perfect for villas and commercial buildingsM

· R290 Refrigerant – Natural, low-carbon and future-proof solution

· Full DC Inverter System – Inverter-controlled compressor, fan motor and pump

· A+++ Energy Efficiency at 35°C – Designed for large underfloor and radiator systems

· Heating, Cooling & Hot Water in One Unit – Efficient and space-saving solution

· High Water Flow Rate (3.0 m³/h) – Ensures stable operation in large heating systems

· Low Noise Design – Only 48 dB(A) at 1 meter

· Engineered for European Power Standards – Three-phase electrical compatibility

Free Delivery Icon Free Delivery Available
If you have more order needs, Please Inquire for Significant Discounts.
Contact us via WhatsApp Free Quote

Resource Download：

Specifications
Smad Model DFT-012CCSE3 DFT-018CCSE3
Power Supply (V/Ph/Hz) 380~415 / 3 / 50 380~415 / 3 / 50
Nominal Heating (Max) – A7/6℃, W30/35℃
Heating Capacity (kW) 5.5 ~ 15.1 7.5 ~ 22.1
Power Input (kW) 1.08 ~ 3.9 1.5 ~ 6.8
Current Input (A) 1.8 ~ 6.9 2.7 ~ 12.3
Nominal Heating (Max) – A7/6℃, W47/55℃
Heating Capacity (kW) 5.0 ~ 13 7.0 ~ 18.9
Power Input (kW) 1.75 ~ 4.96 2.15 ~ 7.35
Current Input (A) 1.9 ~ 7.0 2.8 ~ 12.4
Nominal Cooling (Max) – A35/24℃, W12/7℃
Cooling Capacity (kW) 3.65 ~ 10.2 4.5 ~ 17.7
Power Input (kW) 1.12 ~ 4.16 1.80 ~ 7.30
Current Input (A) 2.0 ~ 7.8 3.3 ~ 12.9
SCOP (Water Temp. 35℃) 4.90 4.93
SCOP (Water Temp. 55℃) 3.86 3.93
ERP Level (Outlet water temp. 35℃) A+++ A+++
Max Input Power (kW) 5.50 9.00
Max Input Current (A) 10.50 16.00
Refrigerant R290 R290
Rated Water Flow (m³/h) 1.80 3.00
Fan Quantity 1 2
Fan Motor Type DC Inverter DC Inverter
Compressor DC Inverter DC Inverter
Circulating Pump Inverter Type / Built-in Inverter Type / Built-in
IP Class IPX4 IPX4
Sound Pressure (1m) dB(A) 44 48
Max Outlet Water Temperature (℃) 75 75
Water Piping Connections DN 25 (1") DN 32 (1-1/4")
Water Pressure Drop (Max) kPa 25 60
Operating Temp. Range (Heating Mode) -30 ~ 45 ℃ -30 ~ 45 ℃
Operating Temp. Range (Cooling Mode) 16 ~ 45 ℃ 16 ~ 45 ℃
Unpacked Dimensions (L×D×H) mm 1287 × 448 × 904 1187 × 488 × 1456
Packed Dimensions (L×D×H) mm 1317 × 493 × 1020 1217 × 538 × 1570
Net Weight (kg) 110 145
Gross Weight (kg) 140 197
Loading Quantity (40HQ) 64 32
