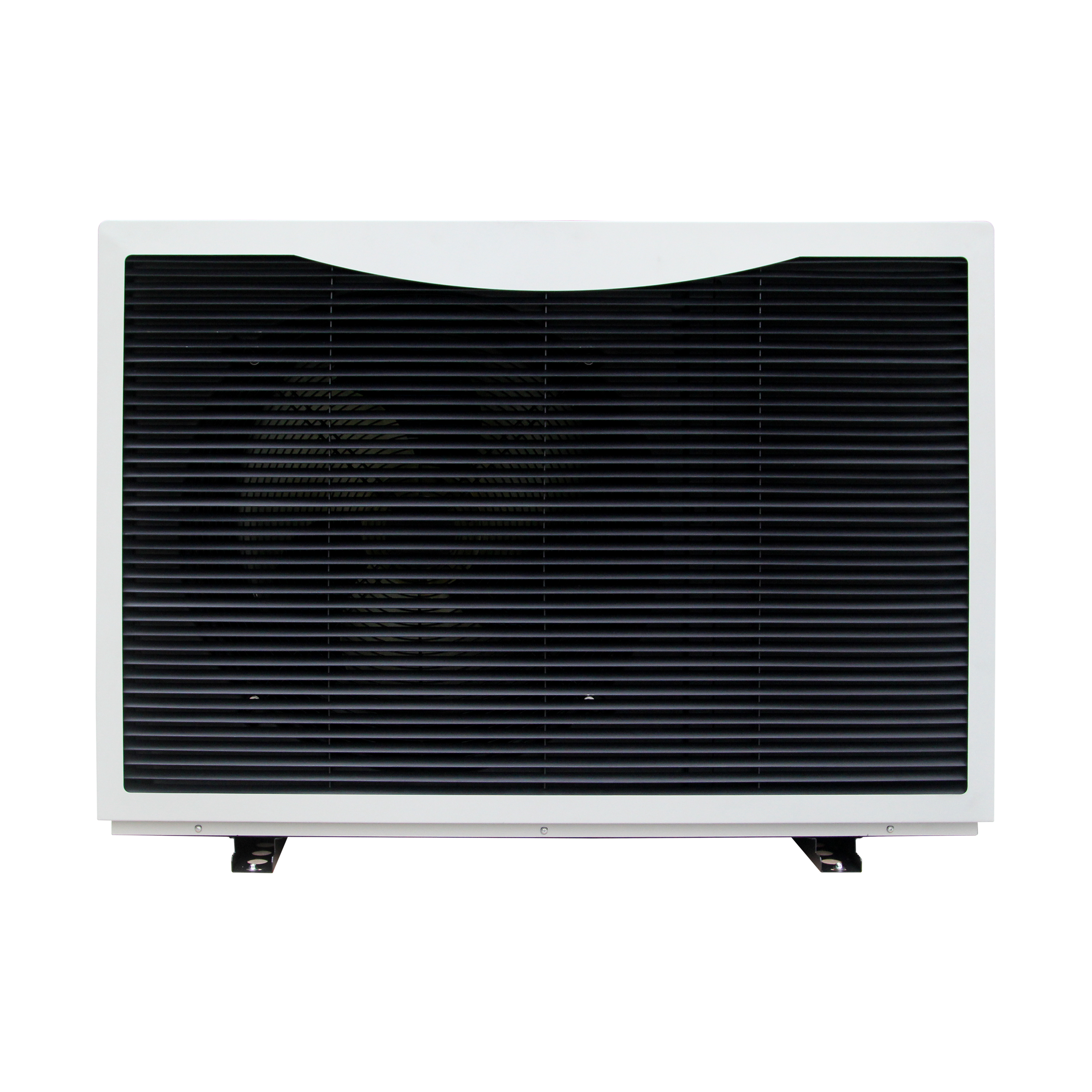

SMAD 12kW R290 Air Source Heat Pump | Three Phase 380–415V | A+++ DC Inverter

SMAD 12kW R290 Air Source Heat Pump | Three Phase 380–415V | A+++ DC Inverter

Vendor: Smad-Heat Pump
SKU: DFT-012CCSE3
Availability: In Stock

· 12kW Heating Capacity (Three Phase 380–415V) – Ideal for European residential heating systems

· R290 Natural Refrigerant – Eco-friendly, ultra-low GWP and EU compliant

· Full DC Inverter Technology – Intelligent modulation of compressor and fan speed

· A+++ Energy Efficiency (35°C Water) – Optimized for underfloor heating applications

· Heating, Cooling & Domestic Hot Water – One system for all-year comfort

· Stable Performance in Cold Climate – Designed for reliable low-temperature operation

· Low Noise Operation – Only 44 dB(A) measured at 1 meter

· Professional Installation Ready – Suitable for three-phase power supply systems

Free Delivery Icon Free Delivery Available
If you have more order needs, Please Inquire for Significant Discounts.
Contact us via WhatsApp Free Quote

Resource Download：

Specifications
Smad Model DFT-012CCSE3 DFT-018CCSE3
Power Supply (V/Ph/Hz) 380~415 / 3 / 50 380~415 / 3 / 50
Nominal Heating (Max) – A7/6℃, W30/35℃
Heating Capacity (kW) 5.5 ~ 15.1 7.5 ~ 22.1
Power Input (kW) 1.08 ~ 3.9 1.5 ~ 6.8
Current Input (A) 1.8 ~ 6.9 2.7 ~ 12.3
Nominal Heating (Max) – A7/6℃, W47/55℃
Heating Capacity (kW) 5.0 ~ 13 7.0 ~ 18.9
Power Input (kW) 1.75 ~ 4.96 2.15 ~ 7.35
Current Input (A) 1.9 ~ 7.0 2.8 ~ 12.4
Nominal Cooling (Max) – A35/24℃, W12/7℃
Cooling Capacity (kW) 3.65 ~ 10.2 4.5 ~ 17.7
Power Input (kW) 1.12 ~ 4.16 1.80 ~ 7.30
Current Input (A) 2.0 ~ 7.8 3.3 ~ 12.9
SCOP (Water Temp. 35℃) 4.90 4.93
SCOP (Water Temp. 55℃) 3.86 3.93
ERP Level (Outlet water temp. 35℃) A+++ A+++
Max Input Power (kW) 5.50 9.00
Max Input Current (A) 10.50 16.00
Refrigerant R290 R290
Rated Water Flow (m³/h) 1.80 3.00
Fan Quantity 1 2
Fan Motor Type DC Inverter DC Inverter
Compressor DC Inverter DC Inverter
Circulating Pump Inverter Type / Built-in Inverter Type / Built-in
IP Class IPX4 IPX4
Sound Pressure (1m) dB(A) 44 48
Max Outlet Water Temperature (℃) 75 75
Water Piping Connections DN 25 (1") DN 32 (1-1/4")
Water Pressure Drop (Max) kPa 25 60
Operating Temp. Range (Heating Mode) -30 ~ 45 ℃ -30 ~ 45 ℃
Operating Temp. Range (Cooling Mode) 16 ~ 45 ℃ 16 ~ 45 ℃
Unpacked Dimensions (L×D×H) mm 1287 × 448 × 904 1187 × 488 × 1456
Packed Dimensions (L×D×H) mm 1317 × 493 × 1020 1217 × 538 × 1570
Net Weight (kg) 110 145
Gross Weight (kg) 140 197
Loading Quantity (40HQ) 64 32
